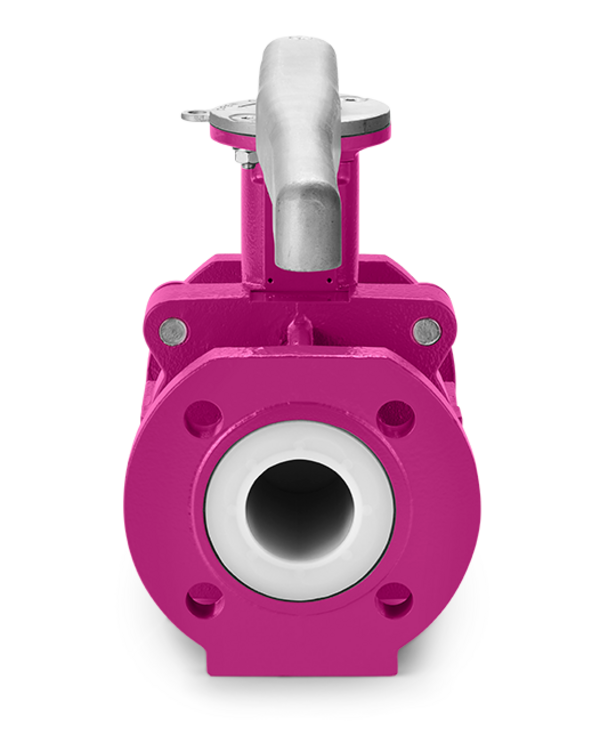

PFA Lined Ball Valve

ChemBall | CSB

Our patented TrueFloat® technology makes the ChemBall | CSB the most innovative PFA lined ball valve available on the valve market today, offering long service life while securely handling aggressive media.

Send us an inquiry and we will contact you as soon as possible.

Product request

Video
ChemBall | CSB

Discover the ChemBall | CSB PFA Lined Ball Valve from ChemValve-Schmid and join the valve revolution!

Design Features

Patented TrueFloat® Technology
The single-piece PFA lining surrounds a flexible, metallic connection between ball and stem, combining the advantages of floating and one-piece ball-stem designs
Security 2
A sophisticated labyrinth seal and double chevron seals guarantee unprecedented operational security
Multiculti & Flexible!
Flange connections, stem connections and face-to-face lengths available in all common international standards

Technical Specifications

Nominal Diameter
DN 15–200 | ½”–8”
Flange Connection
EN 1092-1 PN10–16 | ASME Class 150 | JIS 10K
Top Flange
ISO 5211
Max Working Pressure
16 bar
Operating Temperature
-20°C to 200°C
Face-to-Face Length
EN 558, Series 1 | ASME B16.10, Table 1, Row 18/19
Materials
Ductile Iron | PFA
Conformity
PED 2014/68/EU | ATEX 2014/34/EU | Food (EC) Nr. 1935/2004 | TA-Luft | ISO 15848-1
Pressure Test
EN 12266-1
